SmartSplitter

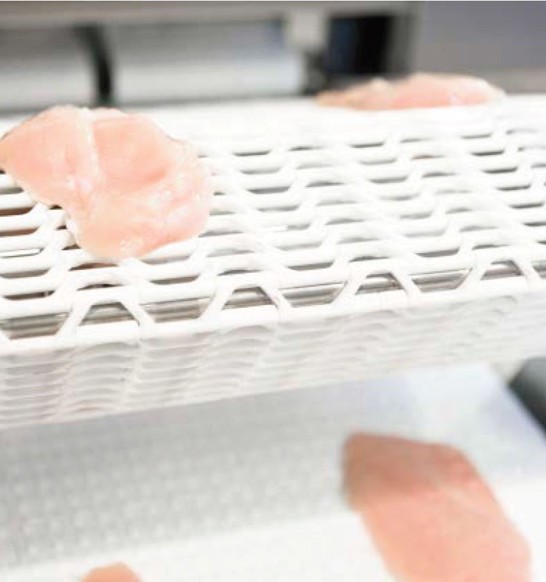

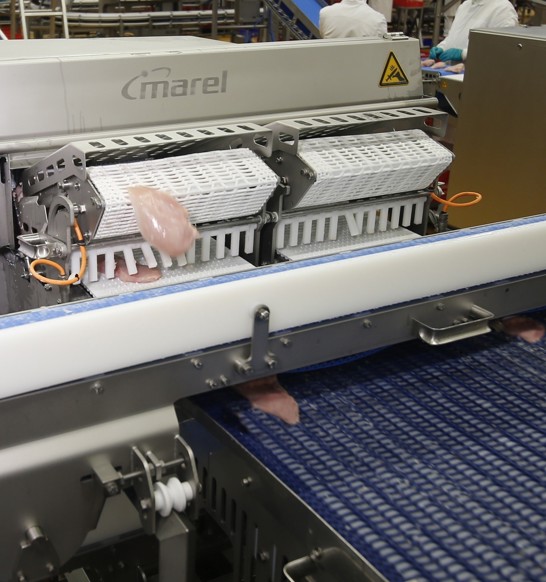

SmartSplitter slices poultry fillets horizontally into portions of desired height. Both single and dual lane versions are available.

The product belt is easily adjusted up or down for desired thickness, and the result is a very high accuracy on the finished product. The dual lane SmartSplitter can operate with different height settings on each lane.

• Up to 75 butterflies per minute on single lane machine
• Up to 150 butterflies per minute on dual lane machine
• Cut-off separation (optional)
• Product hold-down
• Manual height adjustments



Max. product height	150 mm
Single lane belt width	350 mm
Belt Speed	0.4 m/s
Dimensions	2000 x 1390 x 1150 mm (L x W x H)
Weight	Approx. 400 kg
Power supply voltage	3 x 380 - 480 VAC + PE
Power usage	2 kW
Frequency	50/60 Hz
Temperature	0-30 C/ 32 - 86 F
Air pressure	1 l/min 5-6 bar
Water usage	2 l/min
