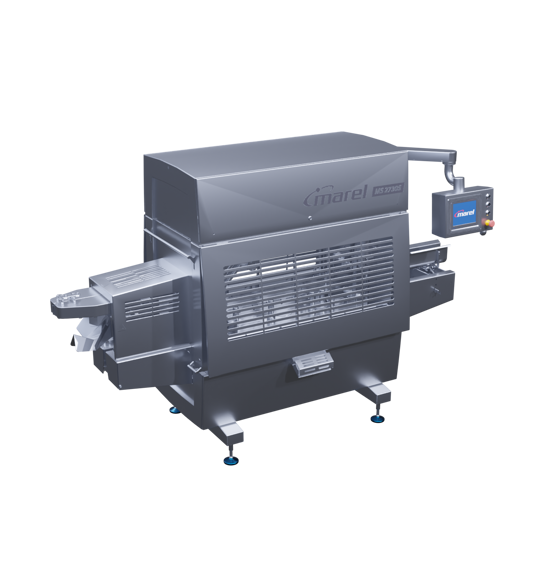

Filleting Machine MS 2730

Automatic size adjustment

The machine uses an automatic size adjustment feature to fit fish from 1.5-8 kg, resulting in higher throughput, quality, and yield on every fish.

User-friendly touchscreen

The multilingual touchscreen helps ensure maximum safety for the operator, who can easily make adjustments and change programs.

Automatic back and belly trimming

The optional trimming tools automatically adjust to the size of each fish, minimizing the need for manual trimming after filleting.

Capacity:	Up to 25 fish/minute*
Fish size:	1,5-8 kg**
Power consumption:	5.5 kW
Water consumption:	15 liters/min
Electricity:	3 x 400V + N + PE / 3 x 220V + PE
Air supply:	230-240 l/min at 7-8 bar
Dimensions L x W x H:	3150 x 1035 x 1980 mm
* With average fish size 4 kg and length 670 mm
** With standard fish sizes



Benefits of JBT Marel Software for filleting machines

• Consistent monitoring helps maximize yield and throughput
• Real-time control and monitoring enable real-time intervention
• Highlights opportunities to improve performance
• Part of a line concept for optimizing line performance

Monitor and control filleting

The software solution for filleting lets you monitor and control your processing in real time. Dashboards provide live feedback for a clear overview of production, and they instantly highlight opportunities for improvement to help you meet targets. User-friendly program management allows you to control filleting settings remotely and for multiple devices.

Get operational insight

Detailed relevant information about filleting is collected and stored in the database, enabling you to analyze and optimize your filleting process. Standard reports can then be created, giving you insight into operational performance on a daily, weekly or monthly basis. This statistical analysis takes away the guesswork and allows you to make effective, data-driven decisions.

Connect your business

JBT Marel Software can be implemented stand-alone with your Filleting Machine MS 2730, or it can be integrated with other JBT Marel processing equipment across a full-line solution. It provides valuable KPIs to help you make intelligent decisions to optimize your filleting results.
