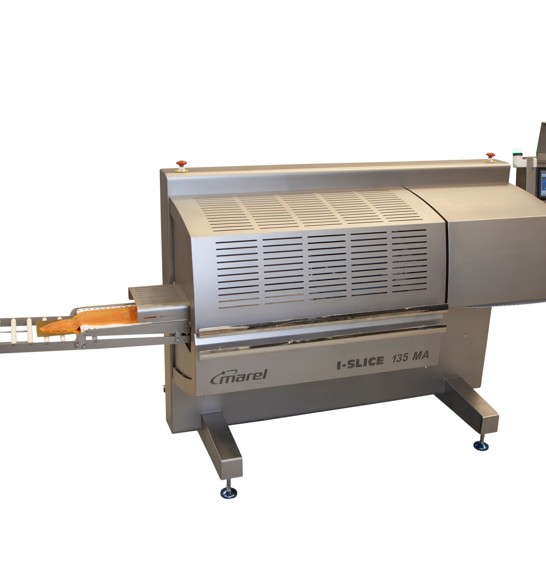

Multi Angle Slicer I-Slice 135 MA

Flexible

The I-Slice 135 MA is a multi-angle version of the I-slice 135. It pre-slices whole sides of fresh or smoked salmon fillets and similar products and has a cutting angle of 10°-68° or 8°-66°. The I-Slice 135 MA is the most versatile machine on the market, producing fixed-weight D-cut slices, sushi slices and portions.

Highly accurate

Each fillet is weighed and then scanned by a vision camera which means very high levels of accuracy are achieved. The laser vision system measures the volume and also the size of the fillet. The computer then compares the weight and volume and calculates the cutting profile to meet the specifications for the final product. During the cutting of the last part of each fillet, a product holder is activated which enables cutting at high speed while preserving the accuracy of the weight of each slice.

Catering and retail packs

After slicing, the fillet is delivered automatically as a whole pre-cut side on a board. It is then manually placed onto the outlet roller conveyor. Alternatively, for production of retail packs, the machine can be combined with a packing line, where the sliced product goes directly from the slicer onto the outlet conveyor, without using a board.

• Fixed-weight slices/portions
• High capacity, 125 cuts/min.
• Cutting angle range 8°-68°
• User-friendly touch screen
• Limited waste
• Easy-to-clean
• Multiple language support

Operation
Capacity:	Up to 130 kg/hour of 25 g slices
	Up to 400 kg/hour of 130 g portions
Cutting angle:	8°-68°
Max cutting width:	1 x 250 mm
Max product length:	750 mm
Max product height:	80 mm inlet opening
Slice thickness:	From 2 mm
Product temperature:	÷ 4 C to + 4° C
Services
Electricity:	3x400V + N + PE / 3x220V + PE
Power consumption:	1,8 kW
Compressed air:	10 l/min, min. 8 bar pressure
Dimensions
Dimensions L x W x H:	3640 x 980 x 1485 mm
Weight:	720 kg
