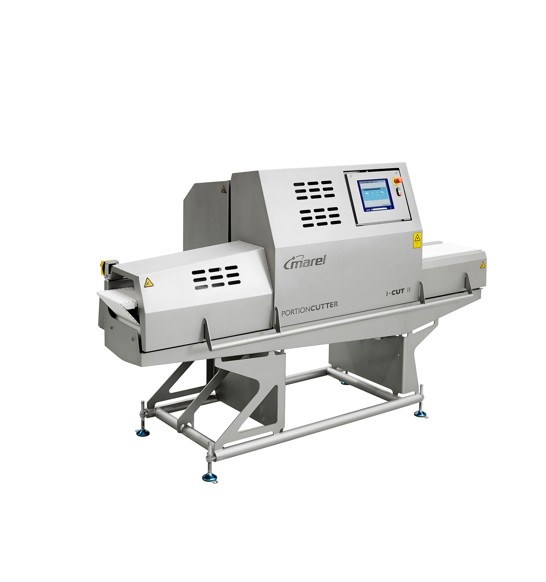

I-Cut 11 PortionCutter

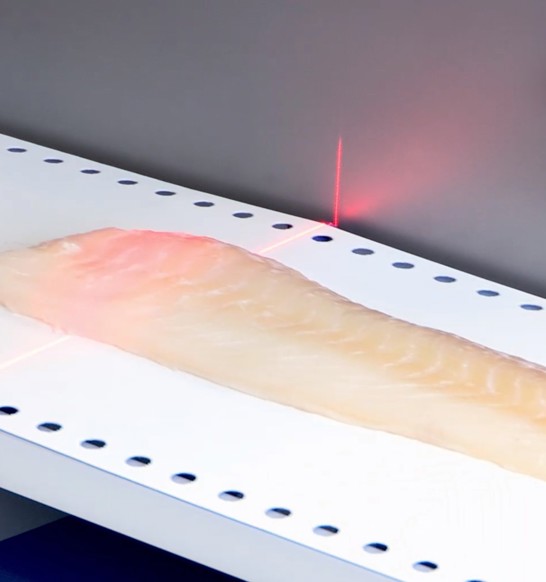

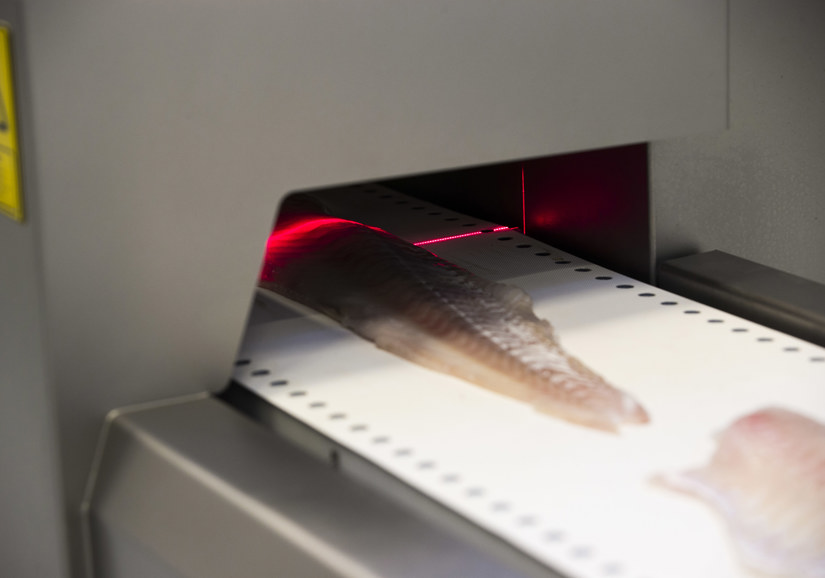

Laser vision system

The I-Cut 11 features a powerful computer and advanced laser vision system, 200Hz camera technology that ensures extremely high accuracy and minimal giveaway.

Minimize trim with innovative software

New generation processing software ensures programming flexibility and offers a variety of specialized cutting patterns.

• Maximum cutting speed of 480 cuts per minute
• Belt speed of 10-340mm per second
• High-speed portioning at a 90° angle

Max. product length:	800mm (31.5in)
Max. product width:	250mm (9.8in)
Max. product height:	100mm (3.9in)
Max. cutting speed:	480cuts/min
Belt speed:	10–340mm/sec (0.4-13.4 in/sec)
Machine length:	2700mm (106.3in)
Machine width:	1000mm (39.3in)
Machine height:	1650mm (65in)

Real-time monitoring with JBT Marel Software

The I-Cut software solution is specially designed to control and monitor I-Cut machines. JBT Marel Software allows for easy-to-use remote programming, control, real-time monitoring and performance reporting. This works to minimize giveaway of raw material and optimize throughput.

Option: Remote service access through Ethernet for maximum uptime

Your trusted service partner throughout the equipment lifecycle - maximizing uptime, optimizing performance, controlling costs and delivering lasting peace of mind. The benefit of well-maintained equipment directly impacts your bottom-line. It prevents unexpected breakdowns, enables peak performance and quality output. It also extends the life of your equipment, protecting both your investment and your team with a more reliable and safe working environment.

Whatever your processing needs - from the products you run to the scale you operate in - our broad service capabilities, proactive service agreements, expert know-how and extensive coverage mean you’ve got the support you need – where and when you need it.
