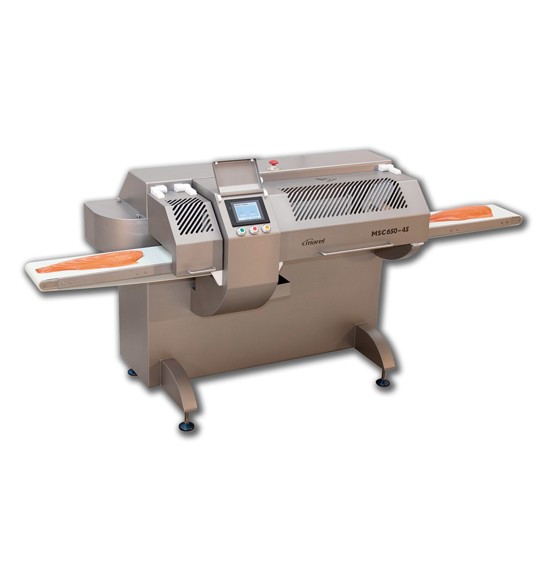

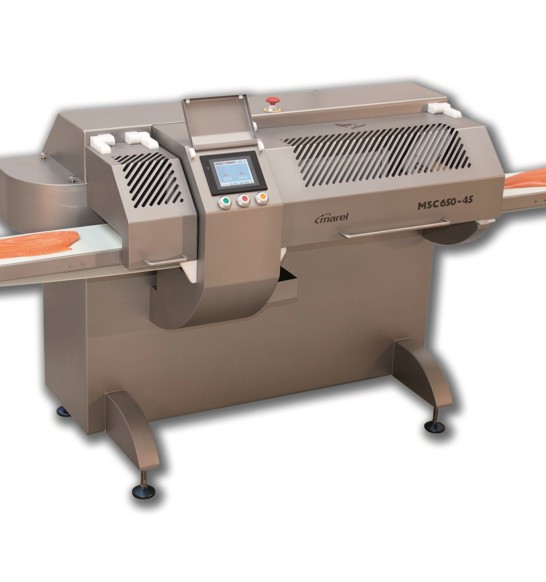

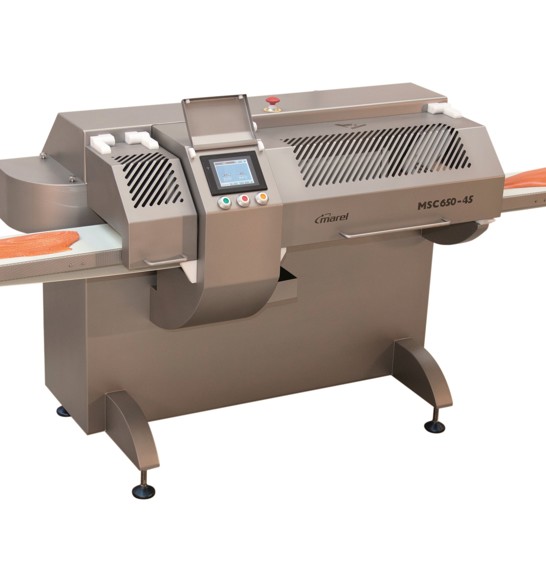

Horizontal Slicer MSC 650-45

The MSC 650-45 is the most advanced horizontal slicer for fish and salmon on the market. It is the new version of the LS 650-45 slicer with new touch screen display and a new fish measurer. The machine breaks with the common “batch principal” in favor of an in-line and continuous production.

All slicing processes are optimized and controlled by a PLC and slicing parameters are easily entered at a touch screen display. The fillet is automatically fixed at the tail before slicing and released after slicing.

The slicing capacity is app. 120 kg/h. by 1 kg fillets. The Long Slicer will always be capable of performing the task, i.e. production of an entire pre-cut side with the specified specifications and the required quality. For cutting raw salmon we offer an optional water spray system for the knife to ensure optimum cutting quality.

• Smoked salmon and trout
• Fresh salmon
• Similar fish species
• High capacity – up to 120 kg/h
• Efficient & reliable
• Automatic in-feed and out-feed
• Slicing calculated by PLC
• Reduced waste
• Easy to clean
• Cleaning stand included
• Electrical driven

Operation
Capacity:	Up to 120 kg/h based on 1 kg fillets, 2,4 mm slice thickness
Cutting angle:	Horizontal
Max product height:	45 mm
Slice thickness:	From 1,8 mm
Max cutting width:	230 mm
Max slicing length:	650 mm
Product temperature:	0 to + 4° C
Services
Electricity:	3 x 400V + N+PE / 3 x 220V + PE
Power consumption:	1,3 kW
Compressed air:	Not required
Dimensions
Dimensions (LxWxH):	2700 x 900 x 1200 mm
Weight:	340 kg
