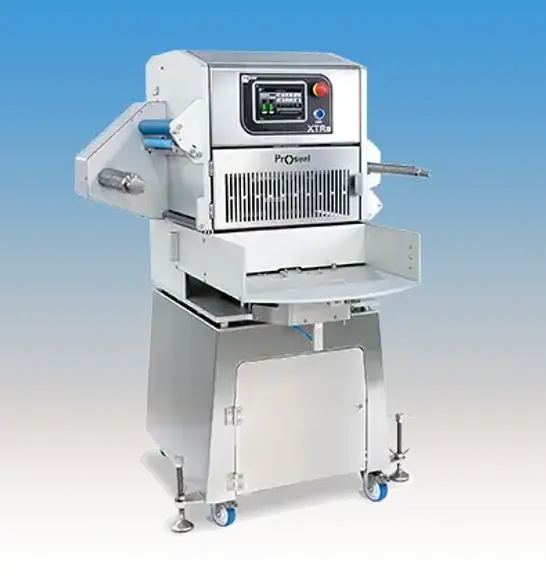

Proseal XTRs Tray Sealing Machine

The successor to the GTR, the XTRs is capable of sealing 30 packs per minute with a two impression tool, without the need for compressed air. The all electric sealing creates a more consistent and efficient seal force with reduced energy usage and total running costs.

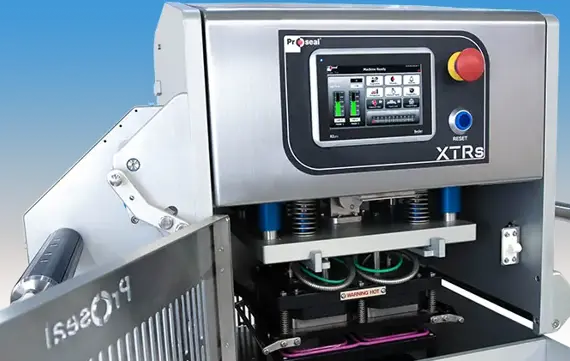

The user friendly design includes integrated HMI with multi-language settings, recipe driven control and automatic tool lock. Quick release tooling enables the user to switch from one tray size to another in less than five minutes. The machine itself is fully portable with an automatic film-feed and is available with optional ‘free-flow’ gas flush, Modified Atmosphere Packaging (MAP) to enable extended shelf life.

Sealing Capacity

Trays	Width	Length	Depth	Diameter
One	270mm	438mm	105mm	270mm
Two	270mm	207mm	105mm	207mm
Three	270mm	104mm	105mm	104mm
Four	270mm	71mm	105mm	71mm

• Height: 1695mm
• Standard Length: 1257mm
• Width: 1240mm
• Weight: 446kg
• Electrical Supply: 200V 16A
