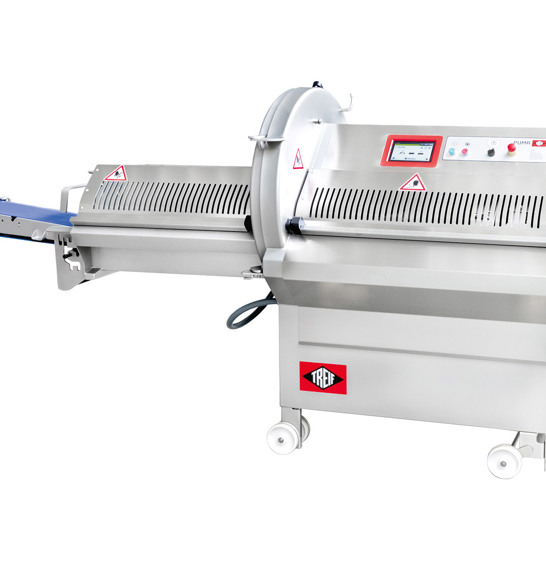

TREIF PUMA

With incredible accuracy, the TREIF PUMA cuts bone-in and boneless raw material from fresh or at temperatures as low as –4°C. Able to portion red meat, poultry, and cheese into a wide range of end-products, including bacon, chops, steaks, roulades, and cheese, the TREIF PUMA can easily meet the demands of changing consumer demands.

High-quality end-products 

Produce consistent premium end-products. Advanced support of raw material and high-quality knives manufactured in-house ensure cuts are parallel for portions of uniform thickness.

Operator friendly

A user-friendly touchpad provides easy operational control, while large openings and considered design ensure cleaning is fast and efficient to minimize downtime and maximize productivity.

	PUMA F/FB	PUMA E/EB
Max. cut-off length	0.5-70 mm (1/50-3”)	0.5-250 mm (1/50-10”)
Max. cuts per minute (dual blade)	200	200
Product cross section	Width: 220 mm (9”) Height: 240 mm (10")	Width: 220 mm (9”) Height: 240 mm (10")
Max. infeed length	700 mm (28”)	700-1,100 mm (28-43”)
Housing dimensions without belt with belt	Length: 2,110 mm (83”) Width: 900 mm (35”) Height: 1,480 mm (58”) Length: 2,750 mm (108”) Width: 900 mm (35”) Height: 1,480 mm (58”)	Length: 2,110 mm (83”) Width: 900 mm (35”) Height: 1,480 mm (58”) Length: 2,750 mm (108”) Width: 900 mm (35”) Height: 1,480 mm (58”)
Connecting load	3.4-3.5 kW	3.4-3.5 kW
Product temperature	Down to -4°C (24.8°F)	Down to -4°C (24.8°F)
Weight without belt with belt	Approx. 285 kg (629 lbs) Approx. 305 kg (672.5 lbs)	Approx. 285 kg (629 lbs) Approx. 305 kg (672.5 lbs)
Accessories	On request	On request

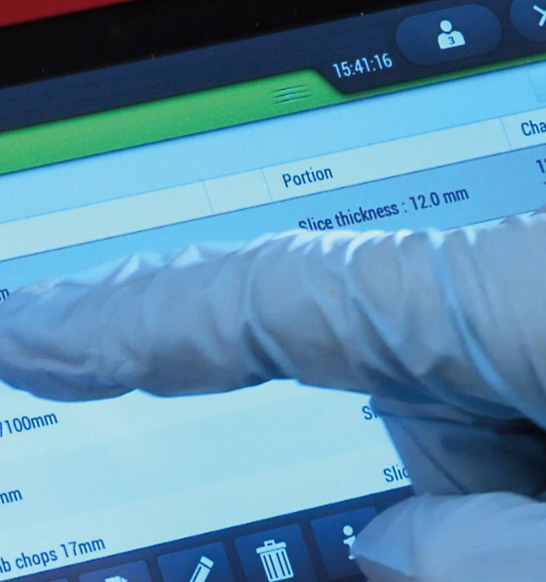

The TREIF PUMA E and TREIF PUMA EB optimize value added cuts by cutting multiple end products out of the same raw material and a user-friendly touchscreen.

TREIF PUMA F and FB control panels offer simplified, easy-to-use operation.

Both TREIF PUMA FB and EB come with conveyor belt at the infeed to increase throughput.

Your trusted service partner throughout the equipment lifecycle - maximizing uptime, optimizing performance, controlling costs and delivering lasting peace of mind. The benefit of well-maintained equipment directly impacts your bottom-line. It prevents unexpected breakdowns, enables peak performance and quality output. It also extends the life of your equipment, protecting both your investment and your team with a more reliable and safe working environment.

Whatever your processing needs - from the products you run to the scale you operate in - our broad service capabilities, proactive service agreements, expert know-how and extensive coverage mean you’ve got the support you need – where and when you need it.
