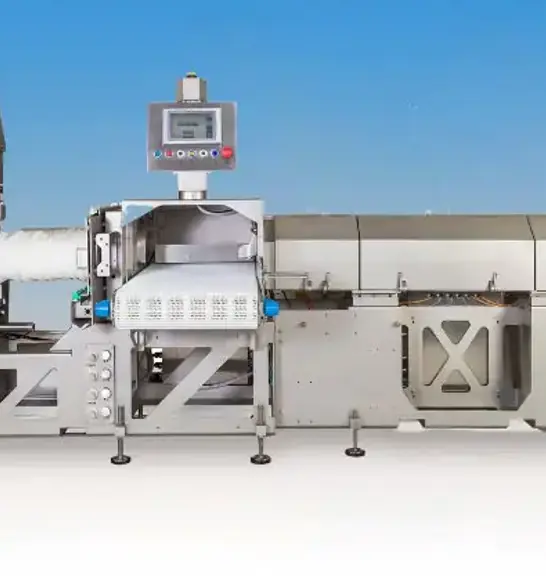

TIPPER TIE TN 2004

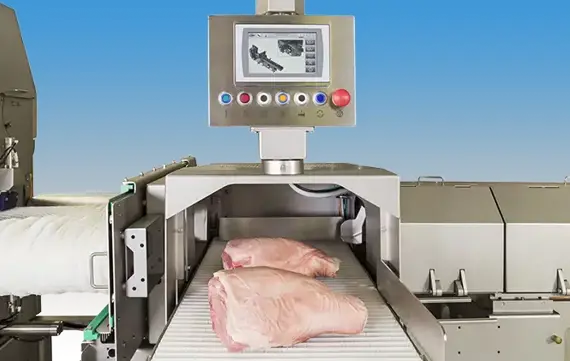

• Automatic Production: Operator or robot places product on conveyor, TN 2004 does the rest to ensure each piece is netted and closed consistently
• Higher Output: Auto chute change automatically indexes the empty chute to the buffer and the full chute to the run position for chute changes with virtually no wasted time
• More Productivity: High speed electric servo provides unmatched control of the product, higher pusher speeds, proven reliability and low service requirements
• All New Hygienic Frame Design: No closed tubing or hard to access areas mean everything can be quickly and effectively cleaned during sanitation
• Electric Infeed Conveyor: Electric drum motor can be ramped up and down vs. the ON/OFF of an air motor. Few parts and no drive mean easy maintenance and reliability
• Available Right and Left: TN 2004 is available as a Left- or Right-hand machine so they can be oriented to fit any layout. Machines can be oriented so one belt can feed 2 machines
• JBT Marel TIPPER TIE PRoCARE^® available

Technical Specifications

• Width: 5280mm
• Depth: 1750mm
• Height: 1925-2025mm
• Speed: 12 pcs/min (start stop)
• Supply power: 400/480 V, 30amp
• Clip Type: Z321
• Chute Length: 683mm (26.875”)
• Protection Class: IP65
• Air Consumption: 15 SCFM at 12 pcs/min
