Stein TM Series Automatic Tempura Batter Mixer

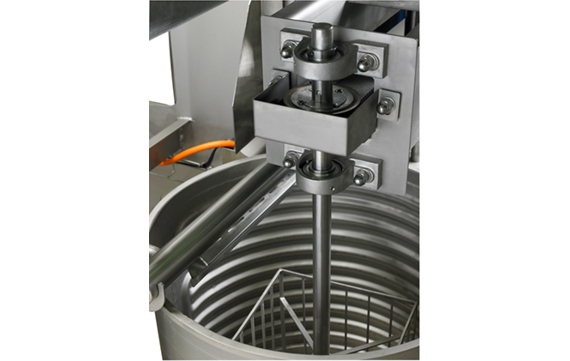

  • The adjustable speed rotating and orbiting mixing cage provides a quick and effective mixing action without damaging the batter
  • Adjustable floats in the 150 Liter water tank pre-measure the water for one or two bag mixes

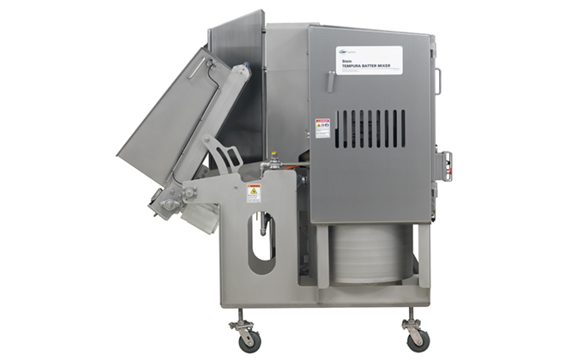

  • Automatic feed dry mix hopper for one or two 2 bag mixes (50lbs. or 100lbs)

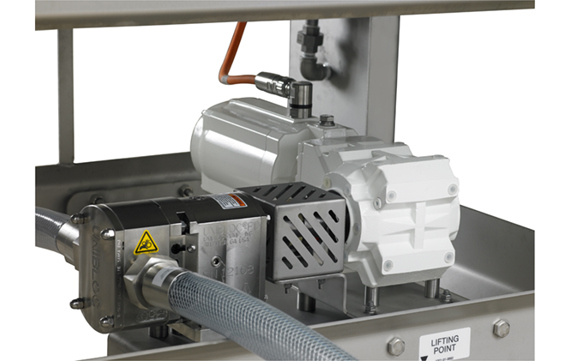

  • Positive displacement transfer pump delivers the batter to the applicator with no shear action
  • Remote sensor in the tempura applicator maintains consistent batter level
SIDE-1-HOPPER-DOWN

Information

Our Stein TM Series Automatic Tempura Batter Mixers are widely recognized the industry standard for tempura batter control.  They automatically proportion, mix, and transfer thick and highly leavened batters to the Tempura style batter applicators.  We designed the TM mixers to provide gentle and controlled mixing, gentle batter transfer while maintaining highly accurate and repeatable mix batter ratios.  The semi-continuous batch mixer also maintains a consistent batter level in the tempura applicator which is critical in the tempura coating process.

Details

  • All stainless steel construction
  • 60,000 BTU refrigeration coils embossed in the 31.5 gallon mixing tank provide batter temperature control
  • Nominal batter mix capacity of approximately 2,000 lbs/hr. of mixed batter (dependent on batter mix ratio)

Versions

Options & Models

  • Models:
  • Stein TM-3 Tempura Batter Mixer
  • Available in hydraulic drives only
  • Push button controls
  • Stein TM-4 Tempura Batter Mixer
  • Available in electric drives only
  • PLC controls

Service

Your trusted service partner throughout the equipment lifecycle - maximizing uptime, optimizing performance, controlling costs and delivering lasting peace of mind. The benefit of well-maintained equipment directly impacts your bottom-line. It prevents unexpected breakdowns, enables peak performance and quality output. It also extends the life of your equipment, protecting both your investment and your team with a more reliable and safe working environment.

Whatever your processing needs - from the products you run to the scale you operate in - our broad service capabilities, proactive service agreements, expert know-how and extensive coverage mean you’ve got the support you need – where and when you need it.

Gallery

Downloads

Title Size Document
Title Stein TM-3 Tempura Batter Mixer Size (0.3MB) Document Download
Title Stein TM-4 Tempura Batter Mixer Size (0.3MB) Document Download
