Standard Bench Scale M1100

The JBT Marel standard bench scales are suitable for all food processing industries in wet and dry environments. The scales are certifiable and can handle multiple weighing jobs throughout the factory. The M1100 series can help you monitor your process, lowering your give-away, increasing your yields, and ensuring better production control.

Compact and powerful

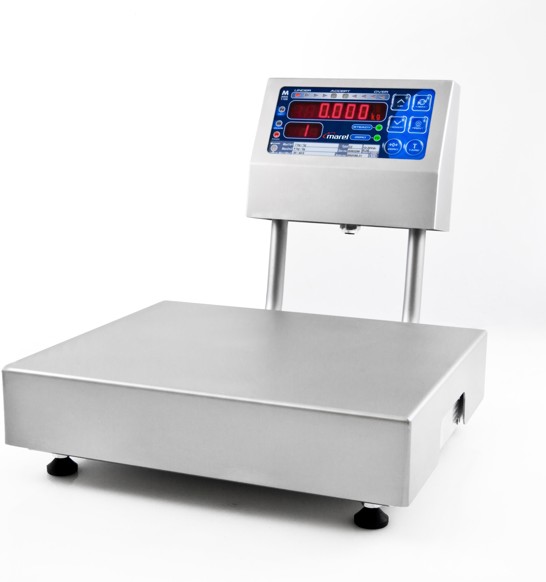

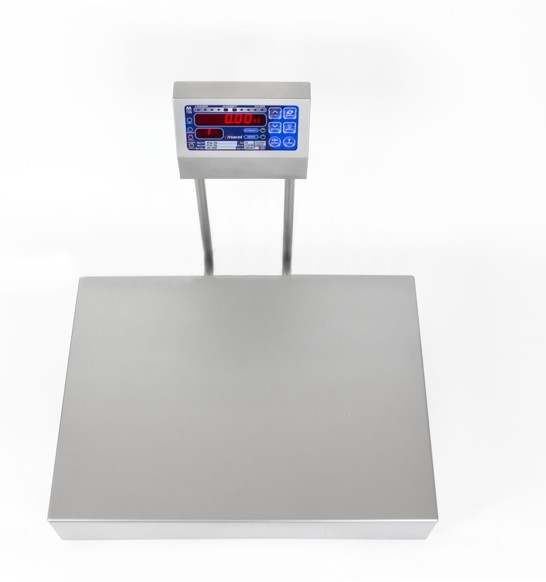

The Standard bench scale is compact and consists of an M1100 indicator combined with a platform. A wide variety of platforms are available to suit all weighing needs from the smallest products to large and heavy boxes.

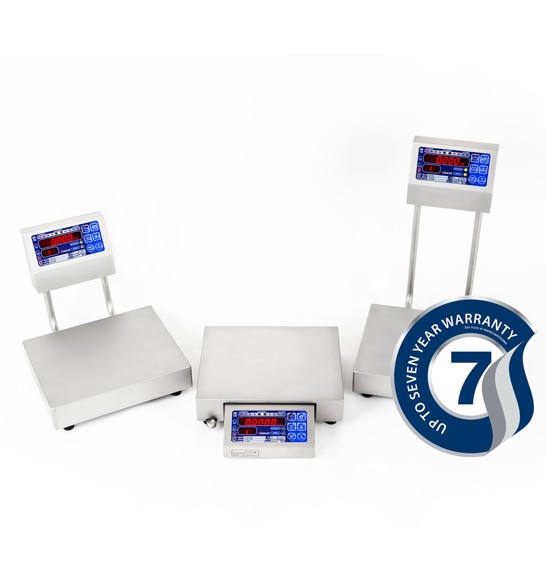

Industry leading seven-year warranty

The JBT Marel standard bench scale provides high levels of accuracy and durability and is backed with an industry-leading warranty of 7 years. Warranty terms (PDF).

Durable and stable construction

The standard M1100 scales are waterproof industrial scales suitable for multiple weighing operations and environments. With the highest IP rating of IP69K they have been designed to withstand the harsh conditions of a washdown environment and require minimal maintenance. The robust design ensures stable weighing results and rubber padded feet keep the scales fixed in their dedicated places.

Features

• Designed to withstand the harsh conditions of a washdown environment
• Capable of accurately registering and recording weights in 0.5-1.0 seconds
• Water-resistant to IP67/IP69K standards
• Designed for minimal maintenance
• M1100 easy to read indicator

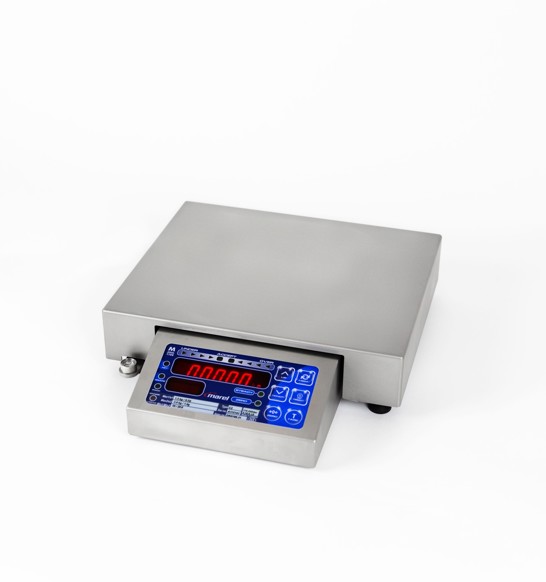

• Long, short pillar, wall mount and “turtle” version.
• Power supply: Mains, DC, and battery version.
• Weighing capacity up to 300 kg
• Platform dimensions from 250x178mm to 500x600mm
• Accuracy from 0.5g

Material:	AISI 316 stainless steel
Platform overload protection:	Overload protection from all directions
Environmental protection:	IP67/IP69K (NEMA 6/PW12), wash-down environment
Approvals:	See list of approvals
Temperature range:	-10°C to 40°C / 14°F to 104°F
Power options:	Two or four D-type batteries (80 - 200 hrs) 110-230VAC 50/60Hz 24V Power consumption less than 1W
Communication:	Ethernet, RS-232

Platform no.	PL1000	PL 2020	PL2062	PL 3020	PL 4020	PL 4026	PL5020
Dimensions mm	250x178	246x296	292x242	296x396	400x550	400x600	500x600
Type
Short pillar Long pillar Wallmount Portable	x x x	x x x	x	x x x	x x	x x	x x
Weighing range (Accuracy)
1.5–3kg (0.5–1g)	x	x	x
3–6kg (1–2g)		x	x
6–15kg (2–5g)		x	x	x
15–30kg (5–10g)				x		x
30–60kg (10–20g)					x		x
60–150kg (20–50g)							x
150–300kg (50–100g)							x
Power supply
Ethernet + Mains Ethernet + dc Battery	x x x*	x x x*	x x x	x x x*	x x x*	x x x*	x x x*

* Excluding wall mount option
