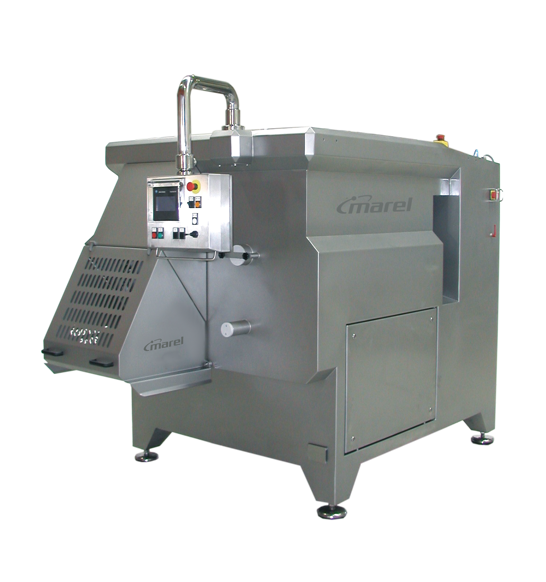

SPEEDmix double shaft intermeshing mixing system

SPEEDmix with double shaft intermeshing mixing system is specifically designed for industrial use. The paddles/wings are overlapping which ensures a quick, gentle and homogeneous mixing process.

As a standard, the machines are equipped with a pneumatically operated front discharge gate ensuring a quick outlet.

The electric control unit is based on panel view PLC system which gives the operator easy access to choose automatic preset mixing programs or run it manually. As optional extras, JBT Marel offers a wide range of equipment such as CO/N2 injection etc. (Please see list below)

The JBT Marel mixers are specifically designed to meet the strictest hygiene requirements in the industry. Paddles and machine housing are made from heavy duty AISI 304 stainless steel. The surface is smooth, the design fully welded and there are no horizontal surfaces, hidden corners, bolts or nuts.

The mixers can be stand alone machines or be part of an integrated processing line.

Motor starter:	Soft starter / Freq. converter
Voltage:	3x400V - 50 c/s or as required
Control voltage:	24V DC
Pressure air:	7 bar (dry air)
Materials:	Stainless steel AISI 304, bead blasted

The machine is designed in accordance with CE standards.

Machine code	Gross tank volume	Mixing volume	Mixer motor	Machine weight
PM3043	1000 l	700 l	7,5 kW	1750 kg
PM3045	1500 l	1200 l	15,0 kW	2250 kg
PM3046	2000 l	1700 l	22,0 kW	2550 kg
PM3047	3000 l	2200 l	30,0 kW	3250 kg
PM3048	4000 l	2700 l	30,0 kW	3500 kg

• Swing-away arm for control panel
• CO/N2 injecting system
• Steam injecting system
• Water dosing system
• Plate lid (hinged or sliding)
• Electronic weighing system
• Temperatur sensor
• Inspection platform
