Pinbone Remover MS 2612

High-quality pinboning

The Pinbone Remover MS 2612 is designed to ensure high-quality pinbone removal with a touchscreen that makes it easy to operate and an open design and quick-release system on all conveyors making it easy to clean.

Suitable for processors of all sizes

Salmon processors of all sizes can benefit from a JBT Marel pinboner to achieve the best results in yield, quality, and production time. Available in one, two, four and six-lane versions, our Pinbone Remover has proven reliability in removing bones while leaving the fish intact.

Fast and accurate

The Pinbone Remover’s unique combination of accuracy and speed results in high yield and output, with the best pinboning quality, often achieved at a belt speed of 4-5 m/min. The settings of the machine are easily changed using the touchscreen display.

• Water-saving sensor system
• Capacity of up to 18 fillets per lane per minute
• Touchscreen for quick and easy adjustments
• Available in up to six lanes

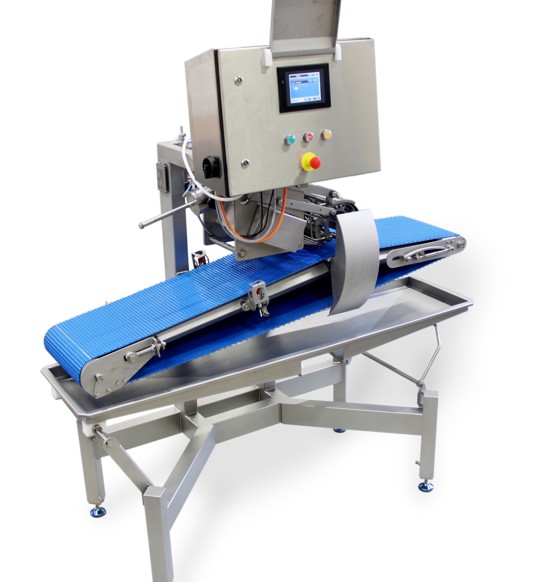

Drip tray and filter for collecting bones and offal (optional).

	Single lane	Dual lane
Capacity	Up to 18 fillets/minute *	Up to 36 fillets/minute *
Power consumption	0.3-0.4 kW	0.3-0.4 kW
Water consumption	5 liters/minute	10 liters/minute
Electricity	220-240V + PE 50/60Hz	220-240V + PE 50/60Hz
Air supply	Not required	Not required
Dimensions W x L	710 x 1650 mm	1000 x 1650 mm
Weight	200 kg	320 kg

* Depending on fish size and quality
See brochure for specifications on other models

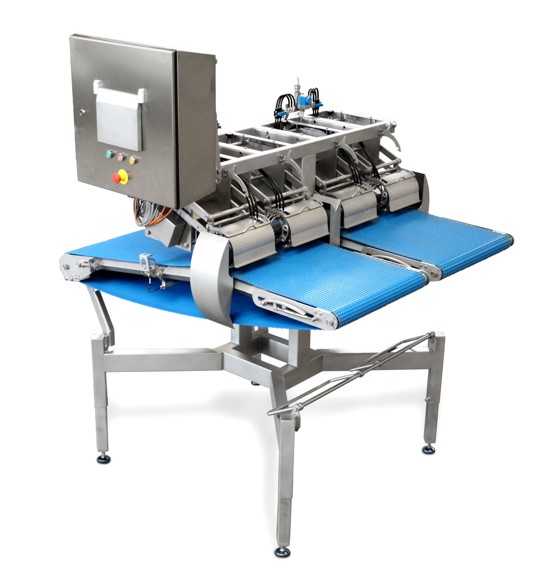

MS2612.00	MS2612.25	MS2612.40	MS2612.60
Single lane	Dual lane	Four lane	Six lane
