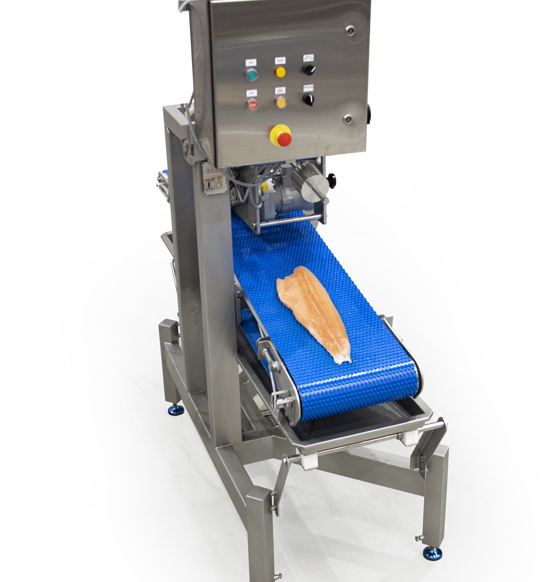

Pinbone Remover MS 2610

High-quality pinboning

The MS 2610 Pinbone Remover is a lighter version of our renowned standard pinboner MS 2612. It is designed according to the same principles, ensuring high-quality pinbone removal, and it can run at the same speed as the MS 2612 to give maximum capacity.

Manual adjustments

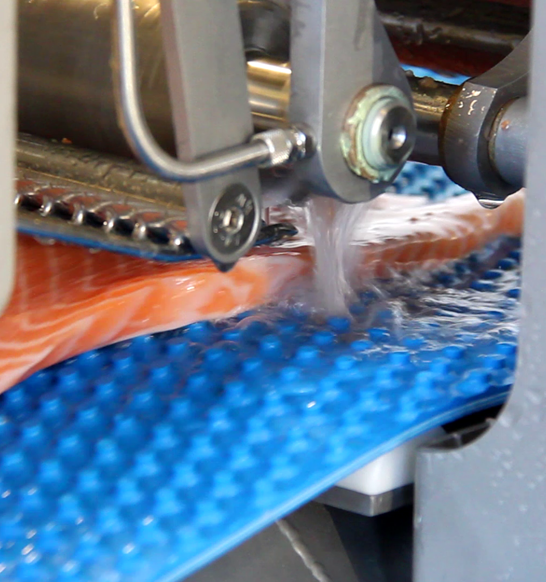

There are three pre-set speeds so the pinbone roller can adapt to the varying condition of the fish, and the pressure of the pinbone heads is easily adjusted by a weight bar. The MS 2610 is available as a single-lane and dual-lane machine.

Fast and accurate

The MS 2610’s unique combination of accuracy and speed results in high yield and output, with the best pinboning quality often achieved at a belt speed of 4-5 m/min.

• Up to 18 fillets per minute, per lane
• Three pre-set speeds for the pinbone roller
• Quick-release system on conveyors

Drip tray and filter for collecting bones and offal (optional)

	Single lane	Dual lane
Capacity	Up to 18 fillets/minute *	Up to 36 fillets/minute *
Power consumption	0.3-0.4 kW	0.3-0.4 kW
Water consumption	5 liters/minute	10 liters/minute
Electricity	220-240V + PE 50/60Hz	220-240V + PE 50/60Hz
Air supply	Not required	Not required
Dimensions W x L	710 x 1650 mm	1000 x 1650 mm
Weight	180 kg	300 kg

* Depending on fish size and quality

MS 2610.10	MS 2610.20
Single lane	Dual lane
