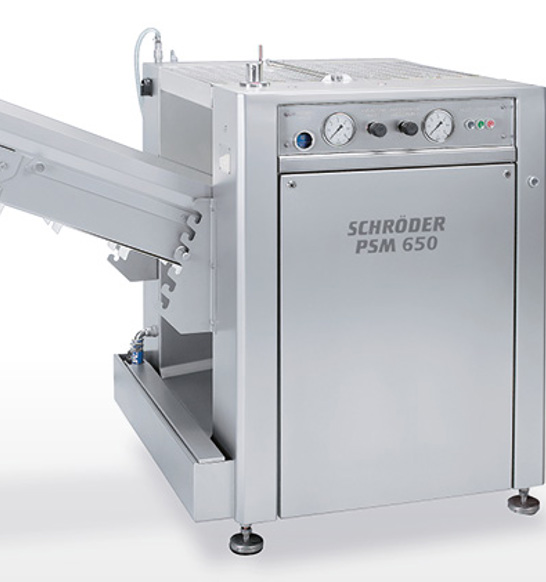

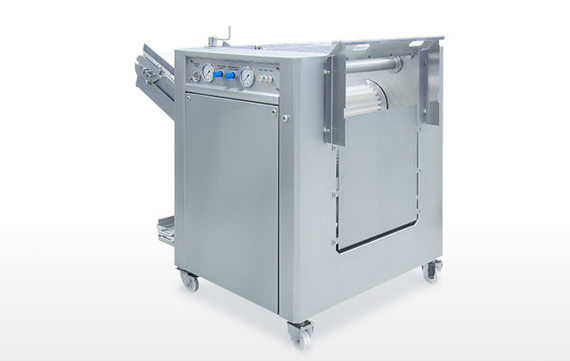

JBT Marel Schröder PSM 650 – Curing Press

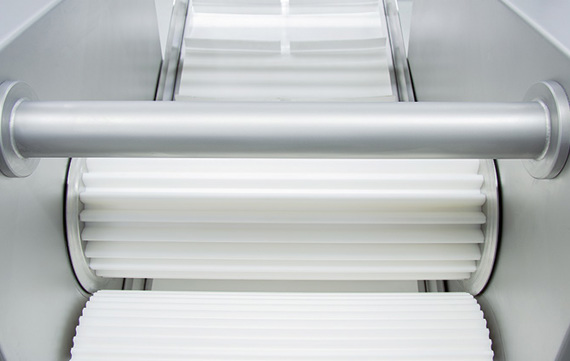

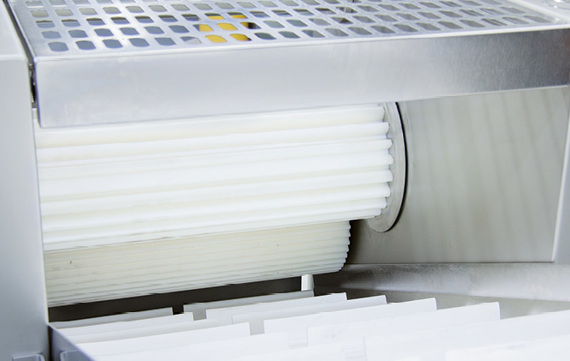

Processing muscles with a hard structure needs special attention in the production of high-quality ham. The lack of flexibility makes the forming and filling process more difficult. When different muscles (silverside/topside) are mixed together, different cooking losses, diffusion and massage times occur.In order to balance out the different muscle textures, the PSM 650 is used. The roller pairs break down the internal structures without destroying the surface.By individually adjusting the pressure and rolling distance, the different products can be taken into account.

Details

• Machine length: approx. 2100 mm
• Machine width: approx. 1250 mm
• Machine height: approx. 1500 mm
• Conveyor width: approx. 600 mm
• Compressed air: min. 6 bar
• Gap width: 10 to 50 mm

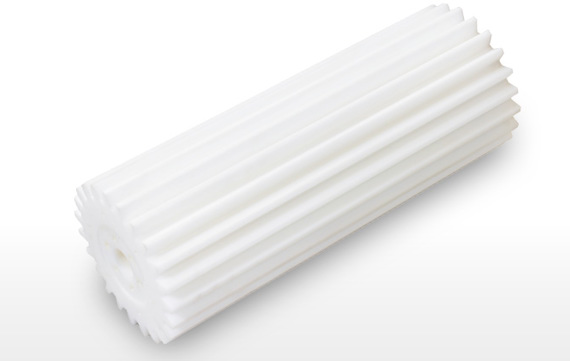

• Roller type (tooth roller): Depending on the product
• Weight: approx. 860 kg
• Electrical connection: 3Ph/PE; 400/440V; 50/60 Hz
