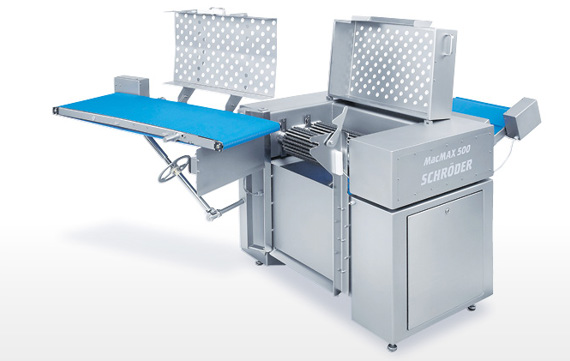

JBT Marel Schröder MacMax 500 – Roller Tenderizer

  • Improved bond between the parts
  • Increased yields
  • Reduced massaging time
  • Increased slice cohesion
  • Increased brine intake
  • Reduced brine pockets
JBT_Schroeder_MacMAX_500_roller_tenderizer

Information

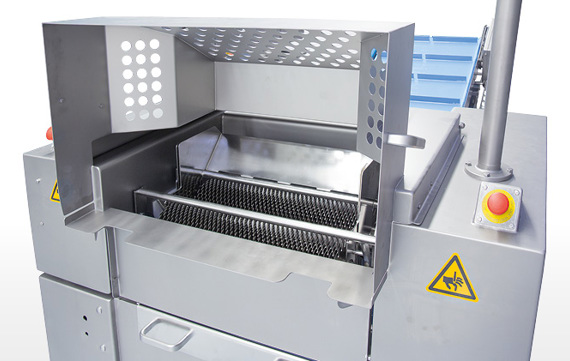

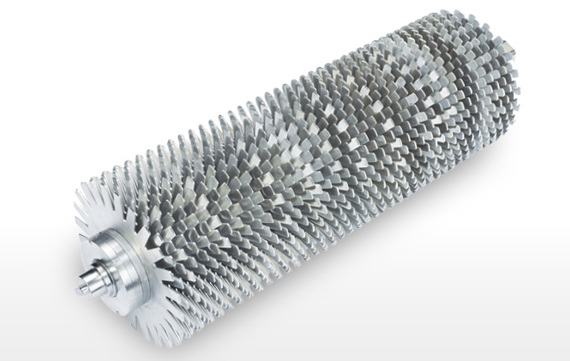

For the production of high-quality cooked ham, massaging the muscles is an important part of the process. Protein is activated which ensures optimum bonding. This process supports the Schröder macerator. The blade rollers cut the surface, enlarging it, and increasing the release of protein and improving the absorption of brine. Large tendons, for poultry products as well, are also cut by the MacMAX, reducing muscle contraction during cooking and increasing binding.

Details

  • Machine length: approx. 3470 mm (with infeed and outlet conveyor)
  • Machine width:  approx. 1340 mm
  • Machine height: approx. 1340 mm (without crane), approx. 2260 mm (with crane)
  • Height adjustment infeed conveyor: 1045 mm – 1215 mm
  • Conveyor width: approx. 500 mm
  • Number of blades per blade roller: optionally 79 (1,5 mm) or 84 pieces (1 mm)
  • Compressed air: min. 6 bar
  • Blade roller adjustment: depending on the product 0 bis 50 mm
  • Weight: approx. 950 kg
  • Electrical connection: 3Ph/PE; 400/440V; 50/60 Hz

Service

Your trusted service partner throughout the equipment lifecycle - maximizing uptime, optimizing performance, controlling costs and delivering lasting peace of mind. The benefit of well-maintained equipment directly impacts your bottom-line. It prevents unexpected breakdowns, enables peak performance and quality output. It also extends the life of your equipment, protecting both your investment and your team with a more reliable and safe working environment.

Whatever your processing needs - from the products you run to the scale you operate in - our broad service capabilities, proactive service agreements, expert know-how and extensive coverage mean you’ve got the support you need – where and when you need it.

Gallery

Downloads

Title Size Document
Title JBT Marel Schröder MacMAX 500 – English Size (3.4MB) Document Download
Title JBT Marel Schröder MacMAX 500 – Polish Size (3.4MB) Document Download
Title JBT Marel Schröder MacMAX 500 – Romanian Size (3.4MB) Document Download
