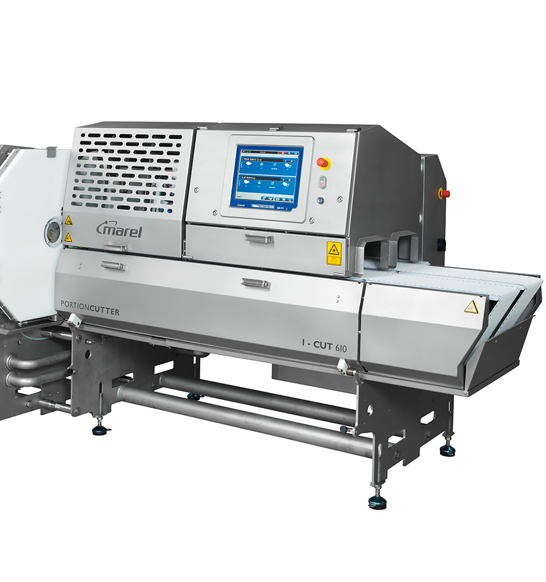

I-Cut 610 PortionCutter

Designed for larger companies

The dual-lane I-Cut 610 PortionCutter is designed specifically to meet the needs of larger fish processing companies. It is the ideal solution for cutting fixed-weight and/or fixed-length portions of fish.

Superior cutting patterns

The processing software provides superior programming flexibility and a variety of specialized cutting patterns. It guarantees consistently superior accuracy and optimum usage of raw materials. This results in high-quality products with maximum return on investment.

• New powerful computer with proven servo motor technology for long lifetime
• New laser vision system with the latest camera technology ensures extreme accuracy
• Up to 1,200 cuts per minute per lane
• Removable Ropanyl belts for easy sanitization
• Optional product holders stabilize the product during cutting
• Optional system detaches tail prior to downstream processing

Max. product length:	Up to 1240mm (48.8in)*
Max. product width:	250mm (9.8in)
Max. product height:	150mm (5.9in)
Max. cutting speed:	Up to 1200cuts/min per lane
Belt speed:	20-500mm/sec (0.8-19.7in/sec)
Machine length:	3300mm (129.9in)
Machine width:	1721mm +/-62mm (66.9in+/-2.4in)
Machine height:	1600mm (63in)

• Innovative cutting patterns and superior programming flexibility
• Intelligent spacing between portions for higher throughput
• Automatic belt speed adjustment for higher throughput
• Intuitive, user-friendly operation via easy-to-operate touchscreen
• Remote service access for maximum uptime and fast service (optional)
