Information
Our LVS Refrigeration units are up to 20% more efficient than traditional pumped refrigerant systems. The patented dry suction system delivers more capacity from the compressor and enhanced evaporator performance, which adds up to greater freezer capacity.
Features & Benefits
- Can be installed in a few days and is easy to retrofit on all your freezers and chillers; also easy to relocate
- Fully automatic controls integrate with the freezer control panel; no special knowledge is needed to achieve trouble-free start-up and operation
- Compact design, with smaller pipe dimensions and no need for a large pressure vessel, resulting in lower refrigerant costs
- Requires little floor space and provides great location flexibility
- Fast temperature pull-down. Low-temperature freezing (down to -50˚C/-60˚F) provides increased freezer capacity and lower food product dehydration
- No refrigerant pumps means easier maintenance with longer service intervals
Details
- Allows low-pressure drop dry suction lines from the freezer’s evaporator; pressure drop is equally low in vertical and horizontal lines, which ensures a greater flexibility in plant layout
- Eliminates refrigerant pumps, but maintains high refrigerant recirculation rates

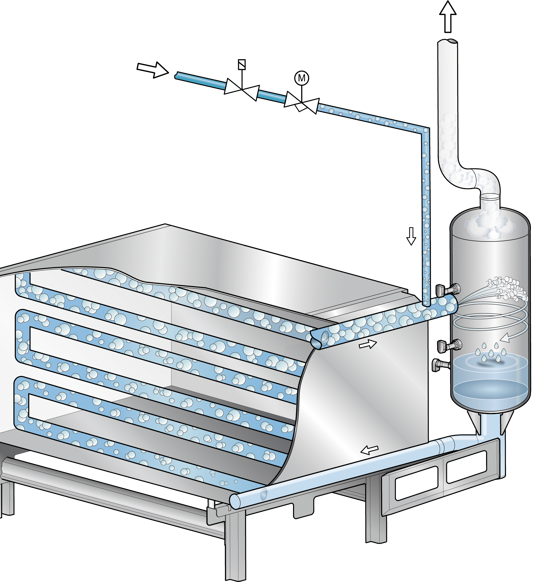

- Has a dry return which eliminates liquid build-up that often causes temperature fluctuations and liquid distribution problems in traditional systems
- Uses smaller quantities of environmentally safe refrigerants such as NH3 or CO2
