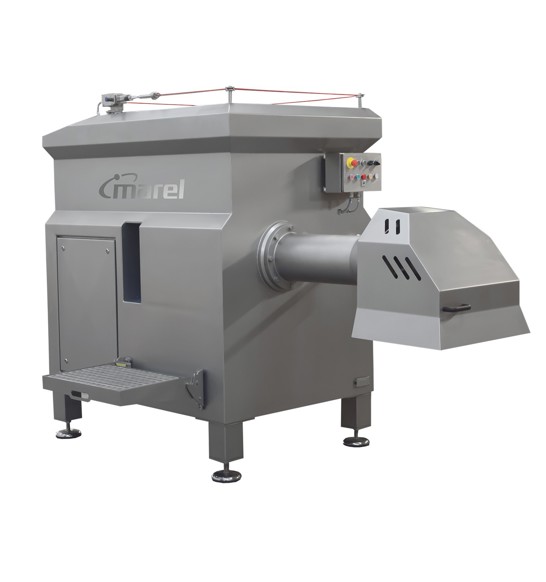

FRESHgrind 250

The FRESHgrind 250 is designed and constructed for continuous grinding of fresh products.

The robust machine housing is made in heavy duty AISI 304 stainless steel and designed without corners or edges in order to facilitate cleaning. Thus the grinder meets the strictest hygiene requirements. The screw and screw housing are made from stainless steel as well. The machine can be equipped with different knives and hole plates, the combination of which depends on the product. Apart from the connection of utilities, there is no external cabling

The inside of the machine is protected against water etc. by a specially made ventilation system which keeps the electrical, mechanical and pneumatic parts dry and clean. Software protects the grinder from overload.
The grinder is equipped with an interlocked safety cover above the grinding head and is further equipped with a safety trip wire on top.

The grinder is equipped with an interlocked safety cover above the grinding head and is further equipped with a safety trip wire on top.

Numerous additional tools and accessories can be applied, based on the needs of the processor (please see list below).

The grinder can be a stand alone machine or be a part of an integrated processing line.

Motor:	45 kW
Motor starter:	Soft starter
Voltage:	3x400V – 50 c/s or as required
Control voltage:	24 V DC
Materials:	Stainless steel AISI 304, bead blasted
Screw:	Stainless steel
Hopper volume:	300 l
Capacity:	Depending on final hole size and type of meat
Cut-knife:	ø250 mm: type according to customer specifications
Hole plate:	ø250 mm: hole size according to customer specifications
Weight:	1600 kg

The machine is designed in accordance with CE standards.

Optional features

• Stirrer to prevent bridge building
• Bone elimination system – only up to ø 6 mm hole plate
• Double knife set
• Frequency converter
• Electric systems for integrated processing lines
• Inspection step or inspection platform
• Accessory trolley
