Compact Grader

Flexible all-in-one solution

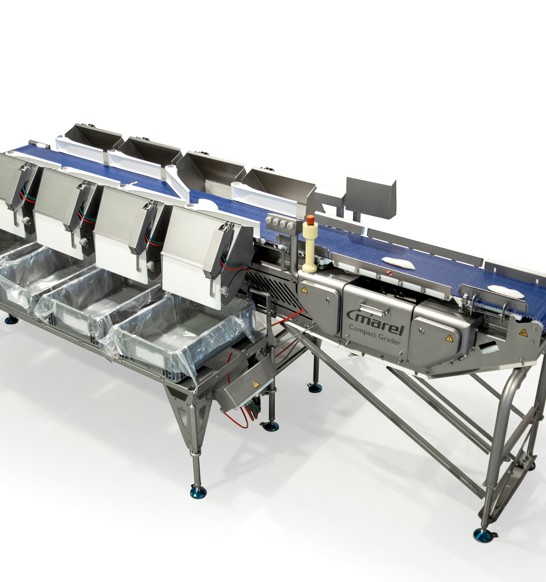

JBT Marel’s Compact Grader is designed to fulfill the needs of smaller operators and larger ones when requiring an excess capacity to handle temporary or seasonal overflows.

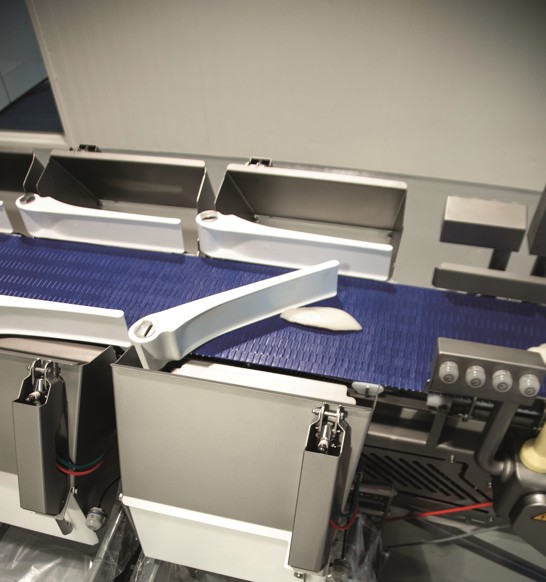

It consists of an infeed section, dynamic weighing and discharge with optional grading and batching processes for catch-weight and fixed-weight batching.

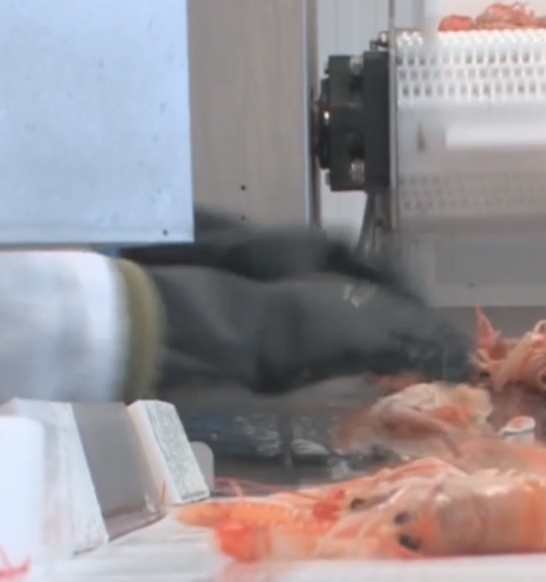

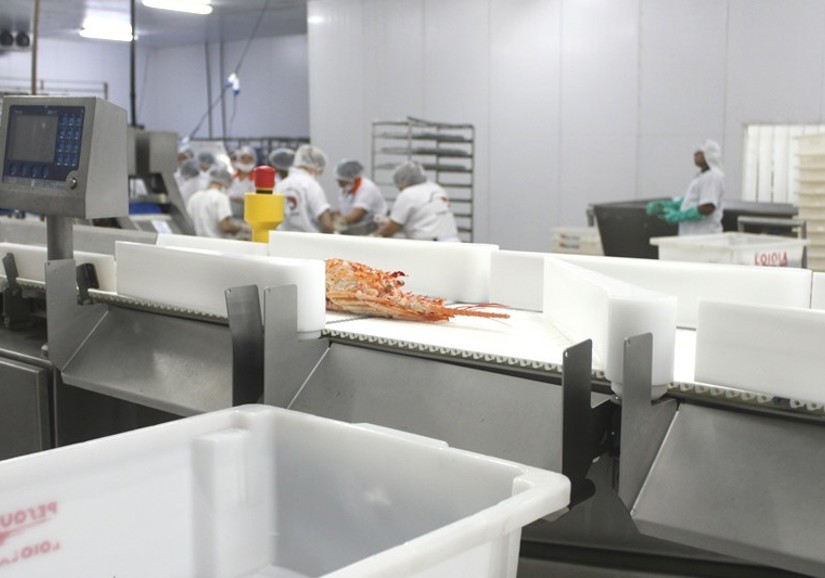

The Compact Grader is used for sorting and batching whole fish or fillets, fresh or frozen into trays, boxes, bags or tubs based on catch or fixed weight.

From grading to batching

When optional automatic batching bins and tables are added to the system, the Compact Grader becomes a batching solution that ensures best fit batching with minimal giveaway. Timely opening and closing of the batching bins is needed to keep batches of products together. For this, operators are supported by a batching light button on the bin. This process provides maximum throughput and doesn’t waste any time.

Advanced technology

Plug and play software is included. Processors can make the most of their Compact Grader right away, setting up multiple programs and monitoring the process. The user-friendly graphical interface of the M2400 display can control more than 50 grading programs. Connection to Innova Food Processing Software gives access to continuous data collection, real-time monitoring, easy-to-understand reporting and traceability throughout the process.

Plug and play

The Compact Grader is easy to install and operate. It includes a dynamic weighing platform that filters out disturbances and automatically adjusts the weighing process.
Thanks to its telescopic legs, the Compact Grader is adjustable in height so good working ergonomics are always guaranteed.
The Compact Grader comes in three versions, each with its own capacity and maximum product size. There’s also a choice of the number of gates, 2x3 or 2x4 gates.

Hygienic and robust design

To meet the most stringent food hygiene requirements, the JBT Marel Compact Grader allows for trouble-free and effective cleaning. Smooth, rounded edges minimize areas where food can trap. The Compact Grader is also designed to withstand the high-pressure washdowns of the food processing environment. The Compact Grader is built to maximize operational efficiency and equipment uptime.

• Simple "plug and play" installation
• Gentle product handling
• M2400 easy-to-operate indicator
• Available with various accessories
• Integrates with JBT Marel's production software Innova

Model	CG450	CG600	CG900
Gates	2x3 or 2x4	2x3 or 2x4	2x3
Max product length	250mm / 10”	400mm / 16”	700mm / 28”
Max product width	250mm / 10”	250mm / 10”	250mm / 10”
Weight range	40-1,500 g	40-3,000 g	100-6,000 g
Max throughout	160 pcs/min	120 pcs/min	80 pcs/min
Gate division	475 mm / 18.7 in	475 mm / 18.7”	650 mm / 25.6”

The Compact Grader is available in the following versions:

• CG450 2x3 and 2x4 gates
• CG600 2x3 and 2x4 gates
• CG900 2x3 gates

Benefits of JBT Marel Software for graders

• Real-time monitoring and control
• Data collection gives insight to optimize grading
• Enhances batch traceability and quality assurance

Monitor and control grading

The JBT Marel Software solution for grading lets you monitor and control your processing in real time. The software provides live dashboards showing data for key performance indicators such as weight distribution, giveaway and throughput. They give you a clear overview of actual production and highlight where improvements can be made or whether any corrective action needs to be taken to ensure production is running optimally. Remote program management allows you to control grader settings directly from the office.

Get operational insight

Information about all batches produced is collected and stored in the software database. Standard reports can then be created giving you an insight into operational performance on a daily, weekly or monthly basis. This statistical analysis takes away the guesswork and allows you to make data-driven decisions to optimize your batching.

Connect your business

JBT Marel Software can be implemented stand-alone with your grader or it can be integrated with other JBT Marel processing equipment across a full-line solution. Data collected and collated provide valuable KPIs that enable you to make intelligent decisions on how to optimize your grading and batching results.

Your trusted service partner throughout the equipment lifecycle - maximizing uptime, optimizing performance, controlling costs and delivering lasting peace of mind. The benefit of well-maintained equipment directly impacts your bottom-line. It prevents unexpected breakdowns, enables peak performance and quality output. It also extends the life of your equipment, protecting both your investment and your team with a more reliable and safe working environment.

Whatever your processing needs - from the products you run to the scale you operate in - our broad service capabilities, proactive service agreements, expert know-how and extensive coverage mean you’ve got the support you need – where and when you need it.
