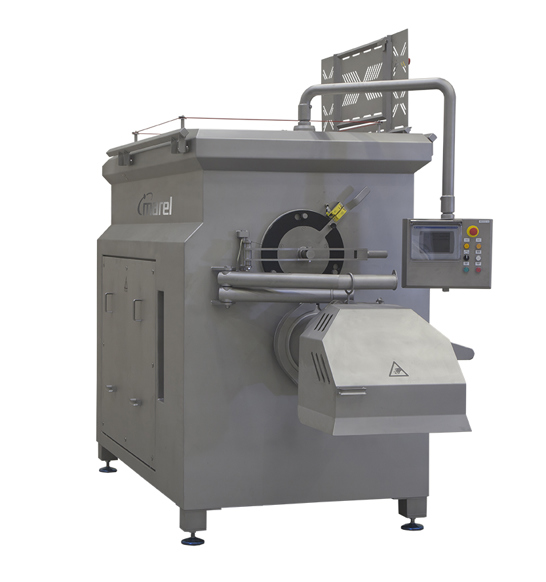

COMBIgrind 280

The grinder is equipped with an interlocked safety cover above the grinding head, is available with bone elimination system, and can be equipped with a single or double knife set. Apart from the connection of utilities, there is no external cabling.

Robust and reliable

The inside of the machine is protected against water intrusion by a specially made ventilation system which keeps the electrical, mechanical, and pneumatic parts dry and clean. This means less unplanned downtime, and enhanced output.

The COMBIgrind has numerous additional tools and accessories that can be applied, based on the needs of the processor. These include:

• Bone elimination system only (up to 6 mm hole plate)
• Double knife set
• Extra hopper to increase holding capacity
• Inspection platform
• Safety rail
• Accessory trolley
• Swing-away arm for control panel
• Secomea modem for remote service/access

Features

• Advanced ventilation system
• Equipped with safety tripwire
• Interlocked safety cover
• No external cabling
• Software to protect from overload



Motor prebreaker:	15 kW (frequency conv.)
Motor grinder:	90 kW (frequency conv.)
Voltage:	3x400V – 50 c/s or as required
Control voltage:	24 V DC
Materials:	Stainless steel AISI 304, bead blasted
Screw:	Stainless steel
Hopper volume:	550 L
Capacity:	Depending on final hole size and type of meat
Cut-knife:	ø280 mm: type according to customer specifications
Hole plate:	ø280 mm: hole size according to customer specifications
Weight:	5050 kg

The machine is designed in accordance with CE standards.
