C.A.T. COOLCAT Re-Chiller

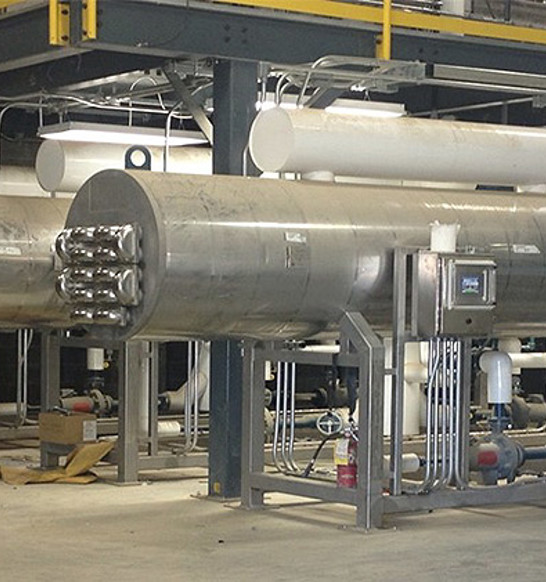

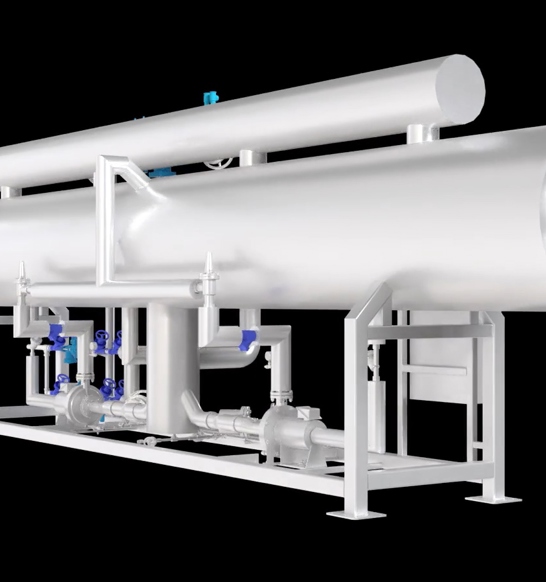

The COOLCAT re-chiller is one of the most outstanding re-chillers on the market today. It is a robust solution for ammonia-based chilling with precise temperature regulation in poultry processing. The COOLCAT recirculates water in multiple passes though a series of ammonia-sprayed tubes that remove the heat from the water with each pass.

In addition to superb reliability, you also get the most economical unit to operate. Each unit comes complete with dual hermetically sealed ammonia pumps, providing 100% operational backup. It utilizes a unique, patented U-bends , manufactured using C.A.T.'s exclusive proprietary process, that guarantees leak-free performance, enhancing reliability. Equipped with state-of-the-art PLC control packages to regulate the temperature, it optimizes energy efficiency with minimized consumption.

Constructed from ASME-rated stainless steel components, it promises durability and high corrosive resistance to ammonia, while adhering to stringent industry standards. Each unit is pre-piped, pre-wired, and insulated for ease of installation, ensuring minimal downtime and simplified maintenance with all necessary valves and pressure gauges included.

• Stainless steel frame and stainless steel components
• Each COOLCAT comes pre-wired and tested from the factory
• Each COOLCAT comes completely pre-piped including all refrigerant valves, pre-wired, and pre-insulated; all necessary isolation valves and pressure gauges included
• Vessels are ASME rated at 250psi
• ASME (250PSIG) coded and complete with all needed valves, insulation, and other items necessary for installation and production

• C.A.T. 1620 -  100 TR
• C.A.T. 1820 – 125 TR
• C.A.T. 2420 – 160 TR
• C.A.T. 2820 – 200 TR
• C.A.T. 2826 – 250 TR
• C.A.T. 2830 – 300 TR

CIP cleaning

C.A.T.'s Automated CIP Technology provides a safe, consistent and effective way to clean your chiller. With JBT Marel’s patent-pending Clean-in-Place (CIP) technology, you’re able to automate the cleaning of the COOLCAT chiller. Because only one employee is needed to run the Automated CIP Technology cleaning system, you’ll immediately cut labor costs and achieve greater plant efficiency. You'll also improve safety by preventing slip-and-falls and other accidents from manually cleaning equipment.

Read all about C.A.T. Automated CIP Technology
