Information

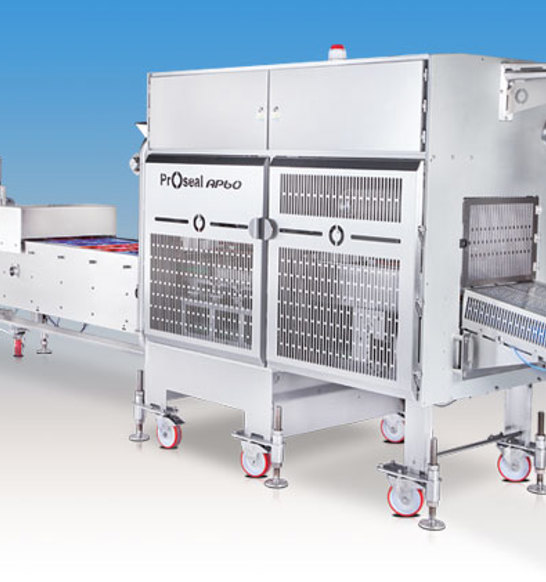

The Proseal AP60 is a linear conveyor, tray sealing system capable of sealing up to 240 packs per minute. The AP60 provides the flexibility required by food producers looking for a fully automated turnkey production line. The customer can specify the length and width of the indexing conveyor to accommodate their tray de-nesting and filling requirements.Optional ‘free-flow’ gas flush Modified Atmosphere Packaging (MAP) available for extended shelf life.Easily integrated with other production line equipment.
Features & Benefits
- Modular design allows customer to specify conveyor length, width and tray pitch
- Variable pitch indexing conveyor will accommodate tray and lid dispensers, filling and weighing heads
- Fully integrated control of machine, tray and lid dispensers, filling and weighing heads
- A high specification conveyor drive system provides full control of the linear acceleration, deceleration and velocity of product movement and eliminates spillage
- Automatic tray eject allowing post seal operations to be carried out efficiently
- Fully portable and castor mounted
- Food industry approved hygienic construction and wash-down protection
- Simple design and operation
- Eseal® energy efficient electric seal system that boasts a massive increase in seal force and a 92% reduction in energy consumption.
Details
- Designed to perform following styles of heat seal to a pre-formed tray; Atmospheric, Gas Flush, Vacuum Gas and suited to all relevant food categories including; Fish and Seafood, Pork, Red Meat, Poultry, Soft Fruit, Fresh Produce, Ready Meals and Desserts.
Options & Models
- eWON a machine connection system to deliver real time data and error condition support, remote setup, and software upgrades, using a customer’s existing IT network
- I-film intelligent film reel monitoring system which actively adjusts film tension based on reel diameter to increase print quality and film reel efficiency, reduce component duty, and provides a film end warning system.
- ProTect a contactless machine login and audit trail system
- Automatic tray de-nesting
- Automatic lid pick and place
- Automatic lid over-capping
- Integrated air and electrical outlets along the machine length
- for auxiliary equipment
- Film coding and printing
- Sandwich Pack Sealing for Board, Recyclable and Non-Recyclable Plastic
- Optional Control Integration of peripheral equipment, such as: de-nesters, fillers, multi-head weighers, laser coders, labelers.
- Hot Rod - long-lasting, water-resistant seal, tool-heating element giving reduced energy consumption especially developed for sealing Smooth Wall Foil Trays
- Sale, Lease Purchase and Rental options available
